Equipped with rear cover power selection speaker TS-205H TS-

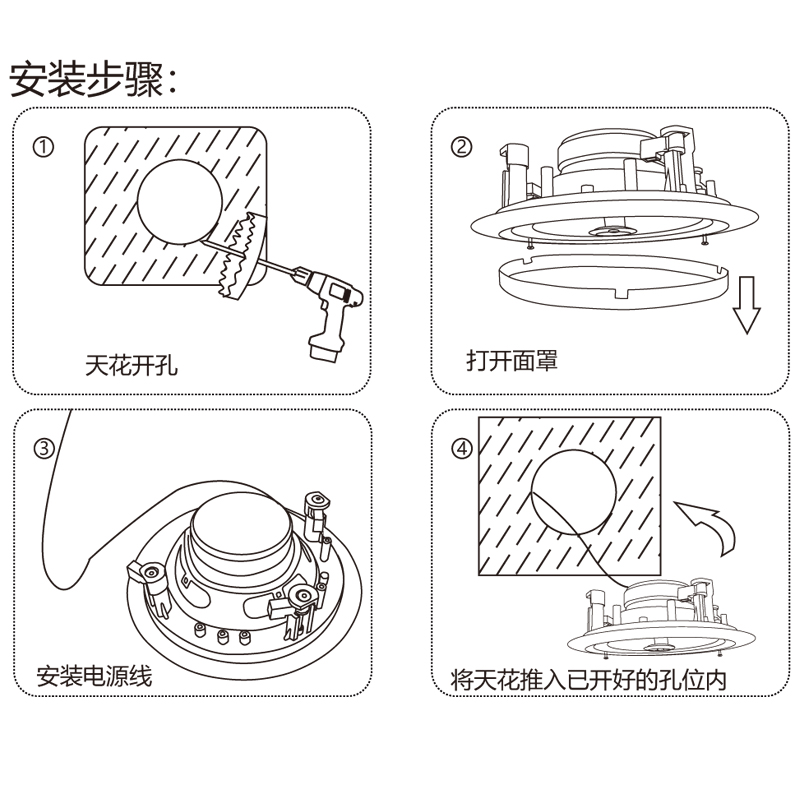

Embedded installation, beautiful appearance...
Application：
Widely used in background music and public address systems in restaurants, teahouses, playgrounds, stations, schools, squares, office buildings, workshops, and other places, and gradually entering the use of home background music systems
Consult Now
- Functional
- Parameter
- System
Equipped with rear cover power selection speaker TS-205H TS-206H TS-208H
Optional constant pressure and resistance, adjustable power, with coaxial treble, steel structure, rear cover, adjustable constant pressure and resistance
|
Model |
TS-205H |
TS-206H |
TS-208H |
|
Input |
70V/100V |
70V/100V |
70V/100V |
|
Speaker |
5"X1,1/2"X1 |
6"X1,1/2"X1 |
8"X1,1/2"X1 |
|
Rated Power |
2.5/5/10/20W/8Ω |
3.8/7.5/15/30W/8Ω |
5/10/20/40W/8Ω |
|
Frequency Response |
100Hz-20KHz |
90Hz-20KHz |
50Hz-20KHz |
|
Sensitivity |
88dB |
88dB |
88dB |
|
Installation size(mm) |
φ170 |
φ200 |
φ240 |
|
Product size(mm) |
φ203*145 |
φ230*150 |
φ270*185 |
|
Weight |
1.7kg |
2.2kg |
3.1kg |
|
Cover material |
Metal |
Metal |
Metal |
