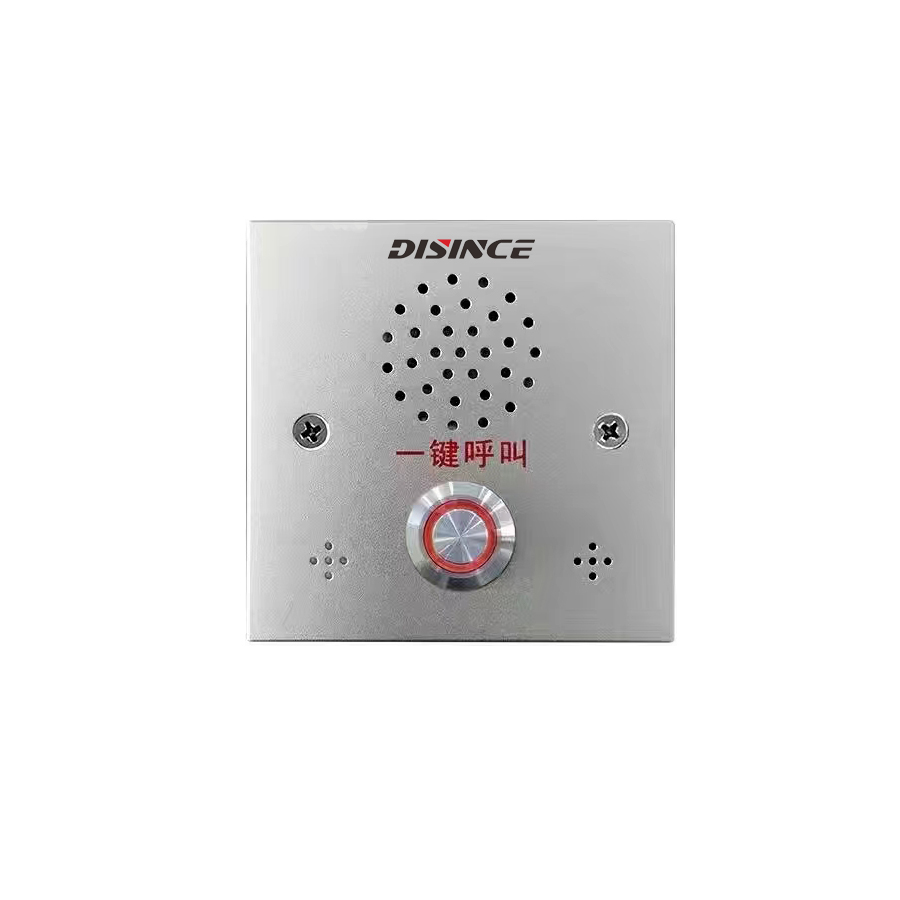

SIP intercom terminal D-7908
1. Using 6mm aluminum panel, it can be installed in wall or wall mounted, with external wind and rain resistance, sturdy and durable, and easy to identify 2. One key call button, which can make one key calls and one key alarms to designated...
Application：
Public address systems for schools, parks, shopping malls, supermarkets, auditoriums, office buildings,
factories, mines, construction sites, etc
Consult Now
- Functional
- Parameter
- System
1. Using 6mm aluminum panel, it can be installed in wall or wall mounted, with external wind and rain resistance, sturdy and durable, and easy to identify
2. One key call button, which can make one key calls and one key alarms to designated centers or terminals
3. Equipped with a built-in 3W speaker and intercom microphone, it can achieve full duplex communication, hands-free communication, and receive broadcasts
4. Support loop monitoring, configurable TF card supports local recording
5. Compatible with standard ONVIF protocol and SIP protocol, can be separately connected to VOIP telephone system (compatible with mainstream IP-PBX)
6. Supports 1 audio input, 1 audio output, and 1 20W mono output
7. 2-channel switch alarm input and 2-channel switch alarm output can remotely control external devices such as access control and lighting;
8. Supports wired transmission to achieve cross routing and cross network segment transmission
Network communication protocol: TCP/IP UDP RTP SIP ONVIF GB28181
Network chip speed: 10/100Mbps
Audio sampling, bit rate: 8kHz~44.1kHz, 16 bits, 8Kbps~320Kbps
Interface:
Network: 1 RJ45 Ethernet port
Audio: 1 audio input, 1 audio output, and 2*20W output
Alarm: 1-channel switch alarm output
Anti disassembly interface: 1-channel anti disassembly input interface
Emergency call button: 1-channel emergency button input
Storage capacity: Scalable TF 64G
Shell protection level: The shell protection of the sample meets the IP65 level requirements in GB/T 4208-2008
Working environment: temperature -20 ℃~60 ℃, ≤ 90% RH (no condensation)
Power supply and power consumption: DC 12V ≤ 5W
Size and weight: 160 × 100 × 38mm (length X width X height), 0.9kg
Note: Please refer to the product design for detailed product parameters. Any changes will not be notified separately
